Description

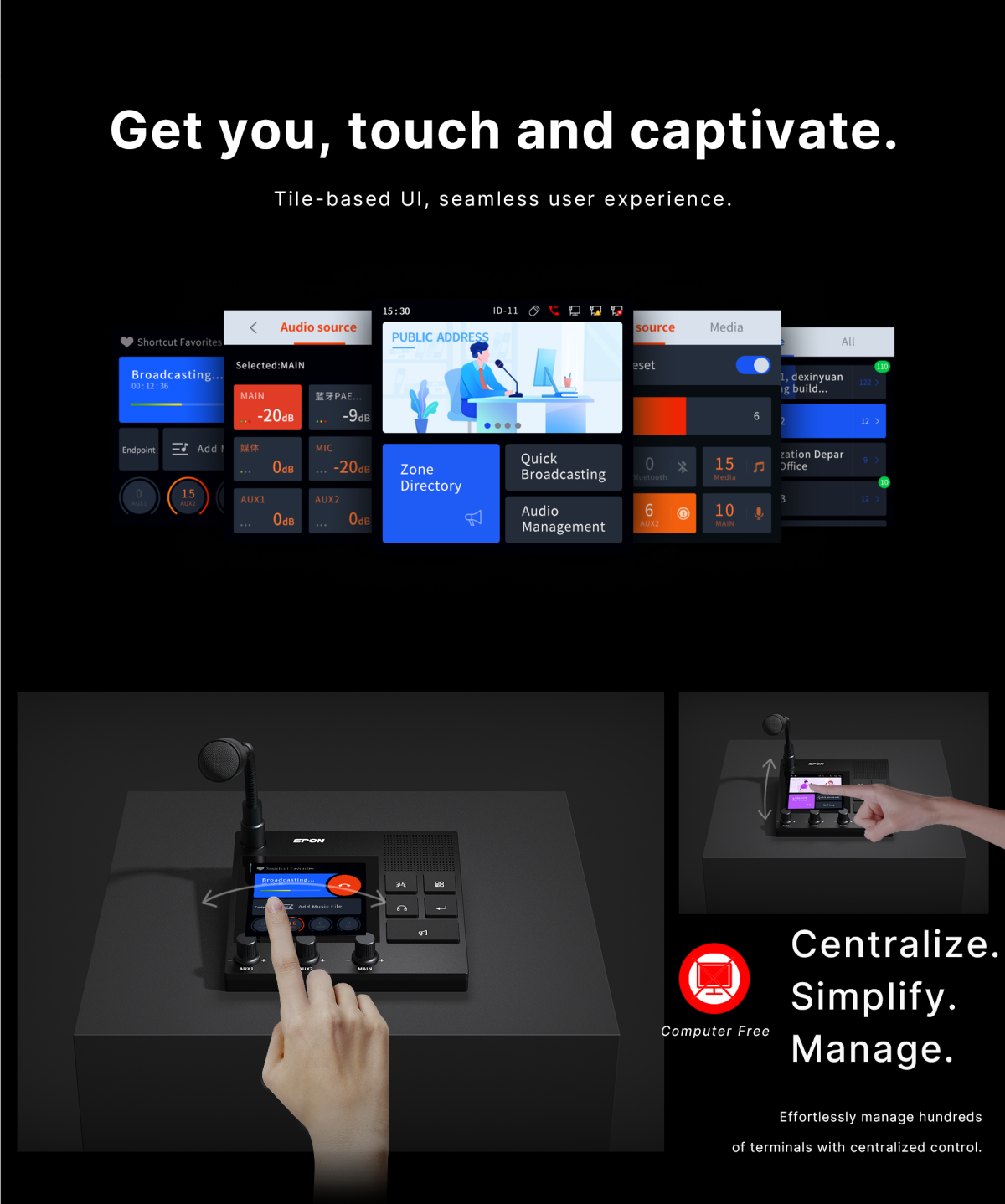

The Network Paging Console with a 4-inch touchscreen, high-quality aluminum alloy panel, and advanced features like zone broadcasting, VoIP integration, and built-in speaker for live communication. Ideal for public address, intercom, and emergency alert systems. Easy to manage and control with the mobile app, offering real-time control and customization.The 4-inch touch display with a resolution of 480x480 ensures easy navigation and clear status visibility for operators.

Featuring a 3W built-in speaker, the console allows for hands-free communication, real-time broadcast reception, and live monitoring of broadcasts.

Advanced Audio Processing Includes a built-in digital audio processor to reduce noise, improve reception range, and enhance audio clarity.

User Management & Access Control With built-in user permission management, the console enables the easy display and control of user terminal lists for effective system oversight.

Multi-Function Shortcuts & Favorites Offers quick access to multiple modes like broadcasting, intercom, and monitoring, and allows users to set favorite configurations for easy retrieval.t.

Specifications

• Power Supply: DC 12V/1.5A
• S/N (Signal-To-Noise) Ratio: ≥80dB
• Audio Sampling & Bit Rate: 8kHz-44.1kHz, 16bit, 8kbps-320kbps
• Audio Sampling Rate: 9kHz-22.05kHz, 16bit
• Frequency Response 100Hz~16kHz
• Network Protocol SIP (RFC 3261), HTTP, TCP/IP, UDP, ARP, ICMP, IGMP, FTP
• Configuration Method Local Settings/Web Page
• Mounting Method Desktop
• Interface 1×RJ45 Ethernet Port, 1×USB 2.0, 2×Line Input, 1×Line Output, 1×Relay Input, 1× Mic input, 1×Power supply port
• Dimensions 144×144×34mm
• Weight 0.55KG
• Standard Accessories 1 X Microphone Rod, 1x Terminal Block Connector,1 x Installation Manual, 1 x Certification
• Optional Accessories DC 12V/1.5A Power Adapter (US/EU/UK/AU)
